Furniture Set
Hitech - 09 A

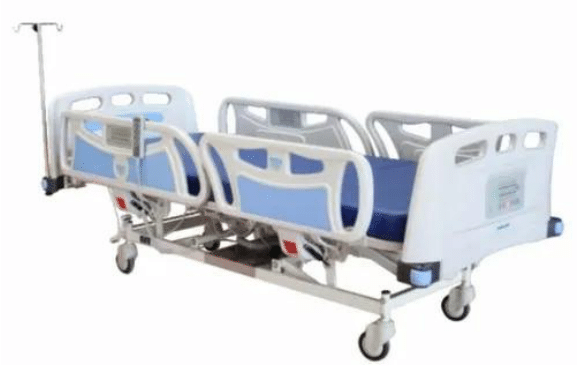

ELECTRIC BED WITH OVER BED TABLE + BED SIDE LOCKER + IV STAND
Technical characteristics
Bed Dimensions:
* Overall length: 210-230 cm
* Overall width: 90-100 cm
* Sleeping surface: min 195x85 cm
* Adjustable height range (from floor to bed platform): 40-80 cm ±10%
Frame & Construction:
* Frame made of high quality steel with anti-corrosion treatment
* Epoxy powder-coated finish
* Easily cleanable and disinfectable surfaces
* Split side rails made of ABS - foldable and lockable
* Platform made of 4-section design
-
Electrical Adjustments:
-
Fully electrically operated
-
Motorized adjustments for:
-
Backrest at least 0-65 with angle display
-
Knee rest at least 0-30
-
Foot ( at least 0-25°)
-
Height adjustment = 40 cm to = 75 cm
-
Trendelenburg / Reverse Trendelenburg (±15°)
-
Quiet and smooth operation of motors
Need help?
+91-989-944-6694
Control System:
- Embedded patient control panel
- Embedded nurse control panel on both sides
- Battery backup in case of power failure
-
Safety Features:
* Four heavy duty medical grade lockable casters (125 mm diameter) with central brake and steer system
* CPR quick release lever for backrest
* Side rails with safety lock
* Side rails to cover about 2/3 of the sleeping platform
* Safe gap at end of bed to prevent patient entrapment (free of hazardous gaps)
* Load capacity: safe working load minimum 200 kg -
Accessories for Bed
* With all standard accessories in order to function properly and to the full capacity/features of the system
* Mobile IV Pole : Height adjustable with Castors
* IV pole: height adjustable and removable
* Urine bag holder
* Mattress: Fire retardant, high density foam with waterproof and anti bacterial cover
* Head and foot boards - removable, made of ABS plastic -
Overbed table:
* Heavy duty and robust
* Mounted on four heavy-duty castors
* Material, color and design compatible with the beds -
Bedside cabinet:
* Heavy-duty and robust
* Mounted on four heavy duty castors
* Complete with a minimum of one drawer
* Lower cabinet
